Minimでホワイトノイズにローパス・ハイパス・バンドパスフィルターをかける
キーボードからフィルターを変更可能.
- 1: ローパスフィルター
- 2: ハイパスフルター
- 3: バンドパスフィルター

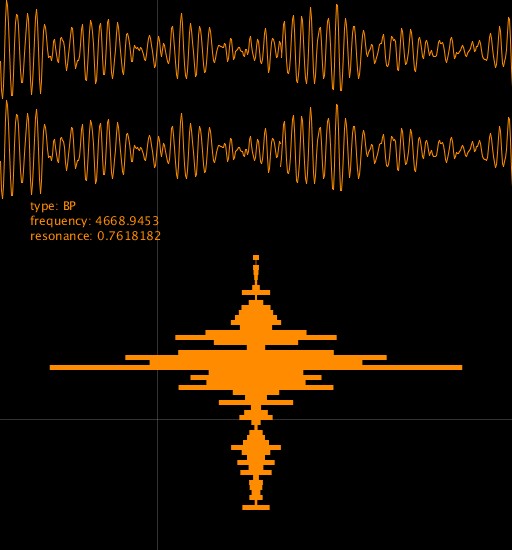

マウスのx座標で周波数,y座標でレゾナンスを決定する. 表示画面は上が波形で,下がFFTの結果を表している.
/** * Low Pass / High Pass / Band Pass Filters * * @author aa_debdeb * @date 2015/12/16 */ import ddf.minim.*; import ddf.minim.analysis.*; import ddf.minim.effects.*; import ddf.minim.signals.*; import ddf.minim.spi.*; import ddf.minim.ugens.*; Minim minim; AudioOutput out; FFT fft; Noise noise; MoogFilter moog; UGen currentUGen; void setup(){ size(512, 550); minim = new Minim(this); out = minim.getLineOut(); noise = new Noise(0.5, Noise.Tint.WHITE); moog = new MoogFilter(440, 0.5, MoogFilter.Type.LP); noise.patch(moog).patch(out); fft = new FFT(out.bufferSize(), out.sampleRate()); } void draw(){ background(0); stroke(128, 100); strokeWeight(1); line(mouseX, 0, mouseX, height); line(0, mouseY, width, mouseY); stroke(255, 140, 0); strokeWeight(1); for(int i = 0; i < out.bufferSize() - 1; i++){ line(i, 50 + out.left.get(i) * 50, i + 1, 50 + out.left.get(i + 1) * 50); line(i, 150 + out.right.get(i) * 50, i + 1, 150 + out.right.get(i + 1) * 50); } fft.forward(out.mix); noStroke(); fill(255, 140, 0); for(int i = 0; i < fft.specSize() / 2; i += 5){ float rectWidth = fft.getBand(i) * 3; rect(width / 2 - rectWidth, 250 + i, rectWidth * 2, 5); } textSize(12); text("type: " + moog.type, 30, 210); text("frequency: " + moog.frequency.getLastValue(), 30, 225); text("resonance: " + moog.resonance.getLastValue(), 30, 240); } void mouseMoved(){ float freq = map(mouseX, 0, width, 100, 15000); float rez = map(mouseY, 0, height, 0, 1); moog.frequency.setLastValue(freq); moog.resonance.setLastValue(rez); } void keyPressed(){ switch(key){ case '1': moog.type = MoogFilter.Type.LP; break; case '2': moog.type = MoogFilter.Type.HP; break; case '3': moog.type = MoogFilter.Type.BP; break; } }
